ELGi air compressors set new benchmarks in uptime and energy efficiency

ELGi Australia

Global air compressor manufacturer ELGi Equipments has built a global reputation for its compressor technology breakthroughs and product range that delivers performance and energy efficiency. At ELGi, every system and every process is part of an unwavering commitment to be ‘Always Better’. This is a testament to the company’s portfolio of over two million compressors running across more than 100 countries, which includes an extensive dealer network across Australia.

ELGi strives to ensure its customers achieve their productivity goals and keep the total cost of ownership low. It offers a complete range of compressed air solutions – from oil-lubricated, oil-free rotary screw compressors and oil-lubricated reciprocating compressors, to dryers, filters, and downstream accessories – that make up a portfolio of over 400 products to suit different applications across a range of industries.

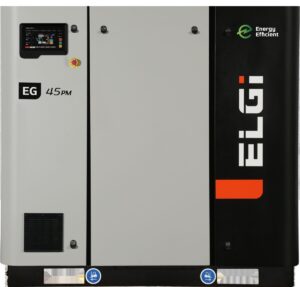

EG 45With the world facing environmental challenges, the transition to renewable energy sources, and demand to manufacture more energy-efficient products, ELGi is focused on improving its specific power consumption (SPC) and Free Air Delivery (FAD).

Keeping best-in-class life cycle costs (including power) in mind, ELGi has developed a new air-cooled, direct drive series with Permanent Magnet Synchronous Motor (PMSM). Available in models ranging from 11- 45 kW, the upgraded EG Series range has welcomed the EG PM (Permanent Magnet) oil-lubricated screw air compressors.

This compressor is set to deliver up to 15% improved efficiency gains, aside from an incremental FAD of 16%. The EG PM Series is tailored to deliver superior performance and energy efficiency, providing unmatched life cycle value across varying load capacities, even at 100% load conditions, unlike most other compressors that operate below 80% load capacity.

According to ELGi Equipments Product Manager Khyati Acharya, the EG PM Series offers customers a range of intelligent features engineered to minimise energy consumption and, as a result, reduce environmental impact.

“The high-efficiency drive system incorporates a proprietary ultra-efficient IE5+ permanent magnet synchronous motor tailored specifically for ELGi air ends,” said Acharya. “The motor’s efficiencies (between 96.5% and 97.6%) are well above the IE5 levels, resulting in maximised energy efficiency and carbon footprint reduction.”

The directly coupled system provides optimised lower motor and airend speeds, ensuring synchronous operation and optimal performance, which is particularly effective in variable speed applications. An intelligent thermal valve with an ambient temperature sensor maintains oil at ideal operating temperatures, which prevents excessive heating in colder months and improves energy efficiency.

“The compressor is also equipped with the Neuron 4 controller for reliable operation, as well as an industrial-grade 7-inch touchscreen interface and intelligent algorithms,” added Acharya. “This optimises energy usage, increases operational efficiency, and provides safe, controlled operation while facilitating proactive maintenance.”

ELGi has also introduced its new EG SP (Super Premium) oil-lubricated screw air compressors for larger kW units. These machines represent an advancement in compressed air technology, delivering significant energy efficiency gains of up to 15%, best-in-class warranty and performance, and low life cycle costs in the 90-160kW compressor range.

EG 110SPAcharya explained that “The upgraded EG SP units embody newly configured two-stage air ends, featuring the proven ?-V profile, which optimises the overall compression process, resulting in up to 15% savings in specific power consumption.”

“The low-speed air ends and a lighter load on each stage extend component life,” she said. “The IE4 motors also enable a seamless integration of advanced design and cutting-edge technology for increased energy efficiency.”

All EG SP machines are equipped with Neuron 4 industrial controllers and feature a unique oil filter designed for prolonged 4000-hour lifespans. The filter efficiently removes contaminants from the compressor’s lubrication system, contributing to longer operational life.

The compressor units are also compatible with Air-Alert, ELGi’s add-on IoT solution, which is an IoT-enabled monitoring and alert system compatible with ELGi’s range of air compressors. Data analysed and delivered by Air~Alert from your compressor enables you to improve your compressor’s energy efficiency and uptime. Air~Alert also allows 24×7 remote monitoring from anywhere in the world.

For peace of mind, the entire EG range, including the EG PM range and SP range, comes with ELGi’s warranty package, which includes a 10-year warranty on the air end, a 5-year warranty on key compressor components, a 3-year warranty on the VFD, and 1-year warranty on electrical and rubber parts.

ELGi’s compressed air technology solutions, like the EG Series, reflect the company’s unwavering commitment to technological progress, energy efficiency, and compressed air performance. These compressors are tailored for manufacturing enterprises seeking energy efficiency and environmental stewardship, promising substantial energy savings bundled into a highly competitive total cost of ownership package.
